SKF replacement differential pinion oil seals for the Nissan / Datsun 280ZX (S130), 1979–1983. Select the option that matches the differential installed in your vehicle.
The seal fits at the differential pinion input and helps retain gear oil while keeping dirt and contaminants out.
Choose Your Differential

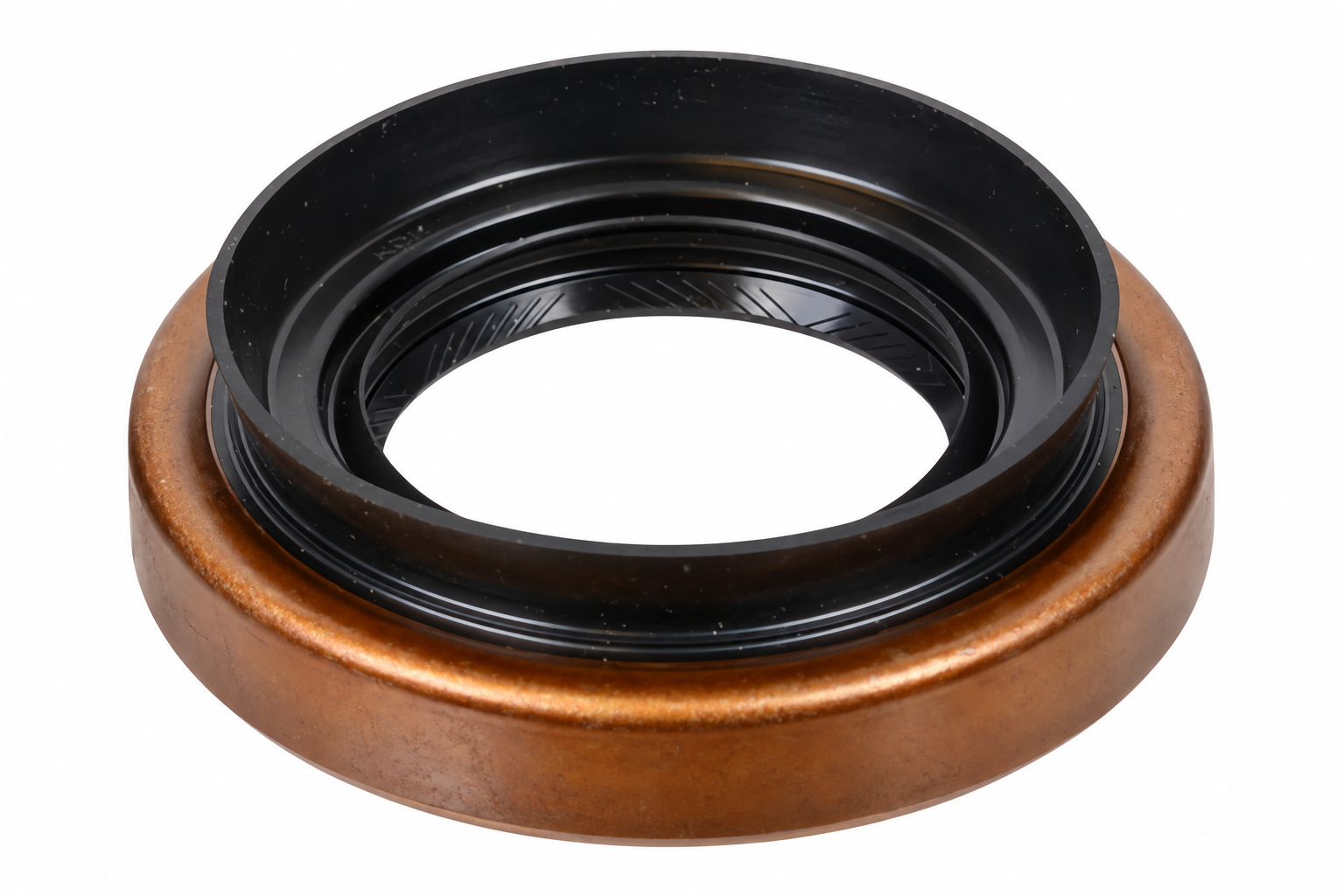

R180 — SKF 13978
For 280ZX vehicles with an R180 differential.
Shaft diameter: 1.378 in (approximately 35mm)
Housing bore: 2.638 in (approximately 67mm)
Seal outside diameter: 2.649 in (approximately 67.28mm)
Width: 0.709 in (approximately 18mm)

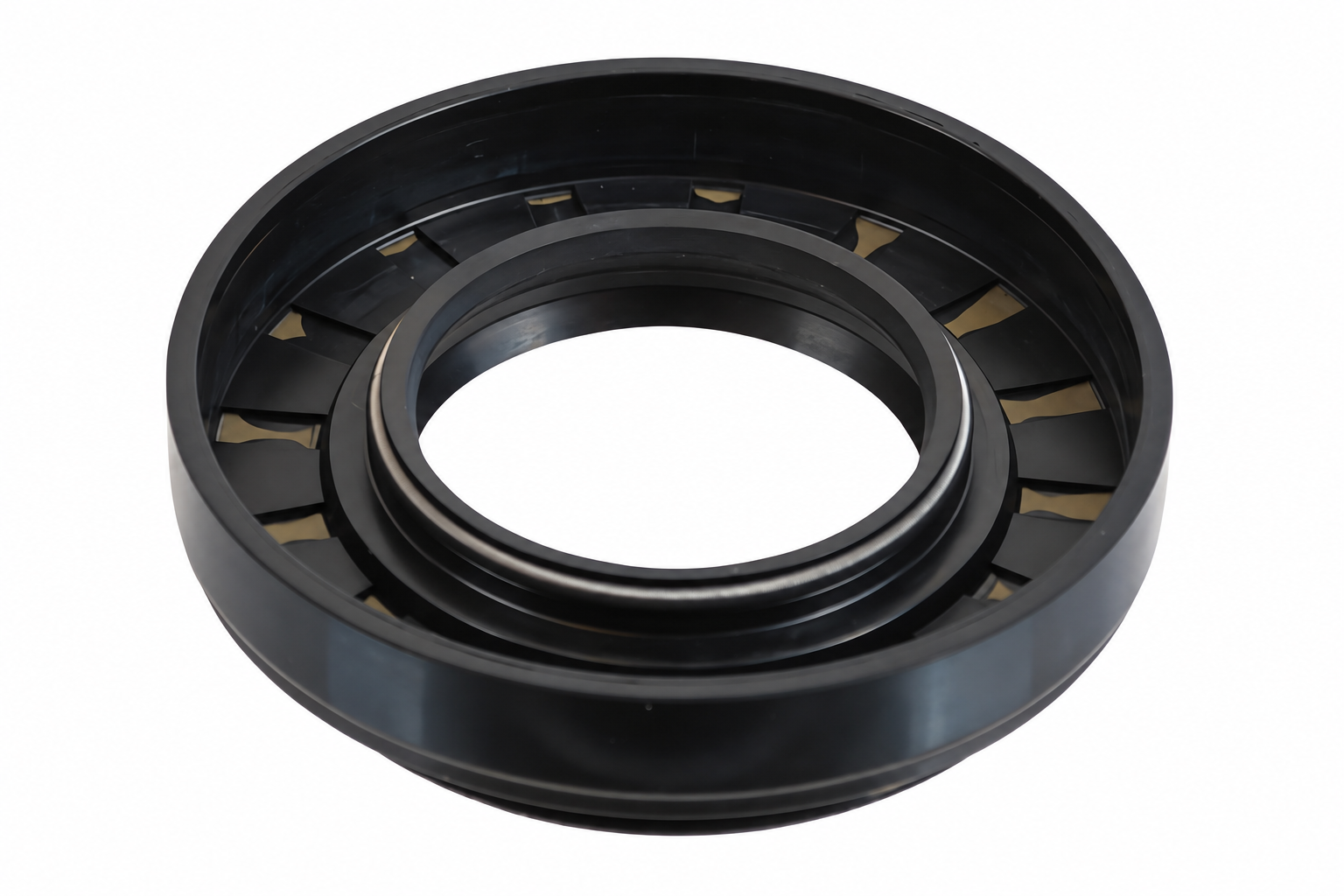

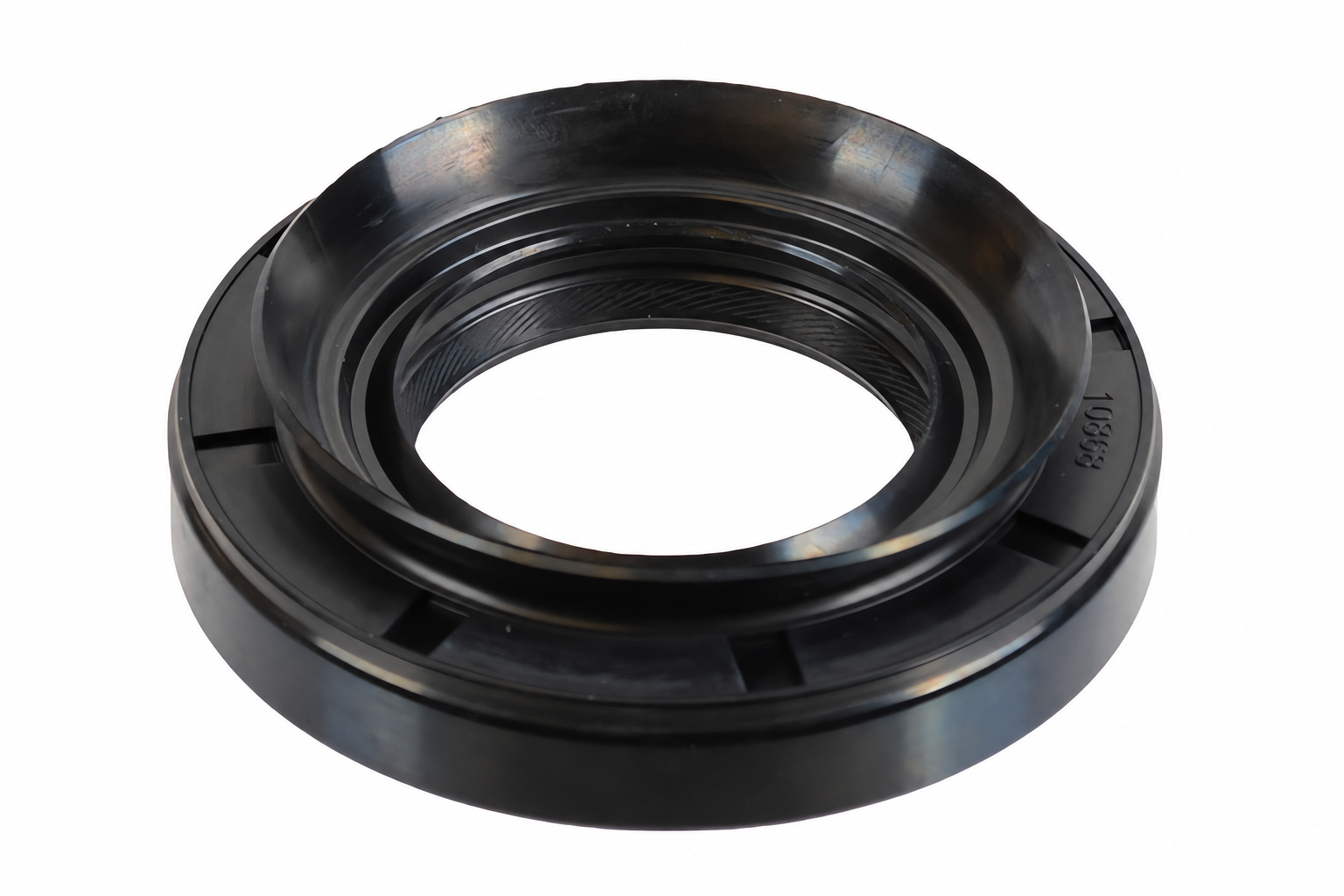

R200 — SKF 15882
For 280ZX vehicles with an R200 differential.
Shaft diameter: 1.575 in (approximately 40mm)
Housing bore: 2.953 in (approximately 75mm)
Seal outside diameter: 2.959 in (approximately 75.16mm)
Width: 0.467 in (approximately 11.86mm)
Fitment Note
Confirm the differential type and compare the original seal dimensions before ordering, particularly on vehicles with a differential conversion. Contact sales@hypernightracing.com if you need help selecting the correct seal.
Supplied individually: One SKF pinion seal in the selected specification.
Supplier Stock — Special Order. Please allow additional time for delivery. Contact us for current availability and an estimated lead time. Freight is calculated separately at checkout.
