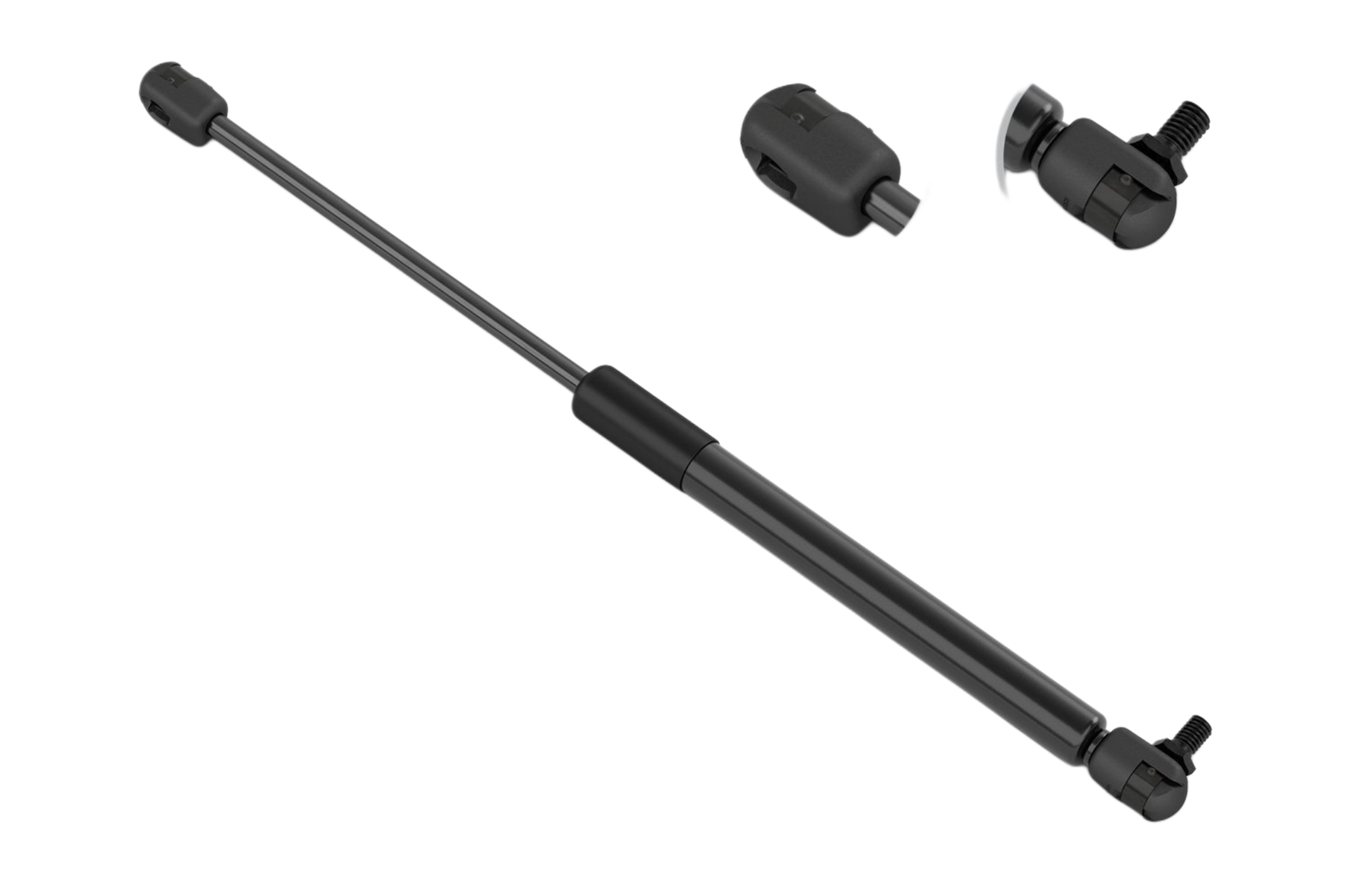

STABILUS
OEM Replacement suit 2+2 or 2+0
Features:
Rust-resistant piston rod extends product life
Smooth operation in all temperature extremes (between -20°F (-30°C) and 176°F (+80°C))
Consistent lifting force through 50,000 cycles
Linear spring characteristics for continuous application of force across the entire range of movement
Compressed Length (MM): 456
Extended Length (MM): 779
Force (N): 285
Force (lbs): 64
Rod Connection: Plastic Socket
Rod Diameter (mm): 8
Rod End Attachment Dia (MM): 10
Shaft Connection: Plastic Socket
Tube connection: Plastic Socket With Ball Stud
Tube Diameter (mm): 18
Tube End Attach Dia (mm): 10
